Guides for Wire Drawing Precision Wear Parts for Rod, Fine, and Ultra-Fine Wire Drawing Machines

Available in tungsten carbide, polycrystalline diamond (PCD), natural diamond, and ceramic materials
Suitable for drawing ferrous, non-ferrous, and specialty wire (copper, aluminum, steel, stainless, brass, and more)
Precise bore geometry to ensure consistent wire diameter and surface finish
Single-hole and multi-hole (stranding) guide configurations available
High wear resistance for extended service life in continuous drawing operations
Compatibility with all major wire drawing machine brands and drawing line configurations
Custom dimensions and bore sizes available upon request
Standard and metric sizing available

Copper and aluminum wire drawing lines
Steel wire and high-carbon wire drawing
Stainless steel and special alloy wire production
Bunching, stranding, and cabling machines
Enamelling and coating line entry guides
Pre-forming and closing dies in wire rope production
Rod breakdown, intermediate, and finishing drawing stages
Drawing machines from Niehoff, Pourtier, Samp, Filpacco, Koch, and other brands

We can help you identify the right drawing guide for your application. Share the wire material, target diameter, drawing speed, and your machine make — and we’ll match you with the correct material grade, bore configuration, and dimensions to minimize downtime and maximize tool life.

Request a quote

We supply a comprehensive range of guides for wire drawing, including carbide guides, ceramic guides, PCD guides, and hardened steel guides for all major drawing machine brands such as Niehoff, Henrich, Samp, Koch, and more. These precision wear parts are essential components in wire drawing lines, directly influencing wire diameter tolerance, surface quality, and overall production efficiency.

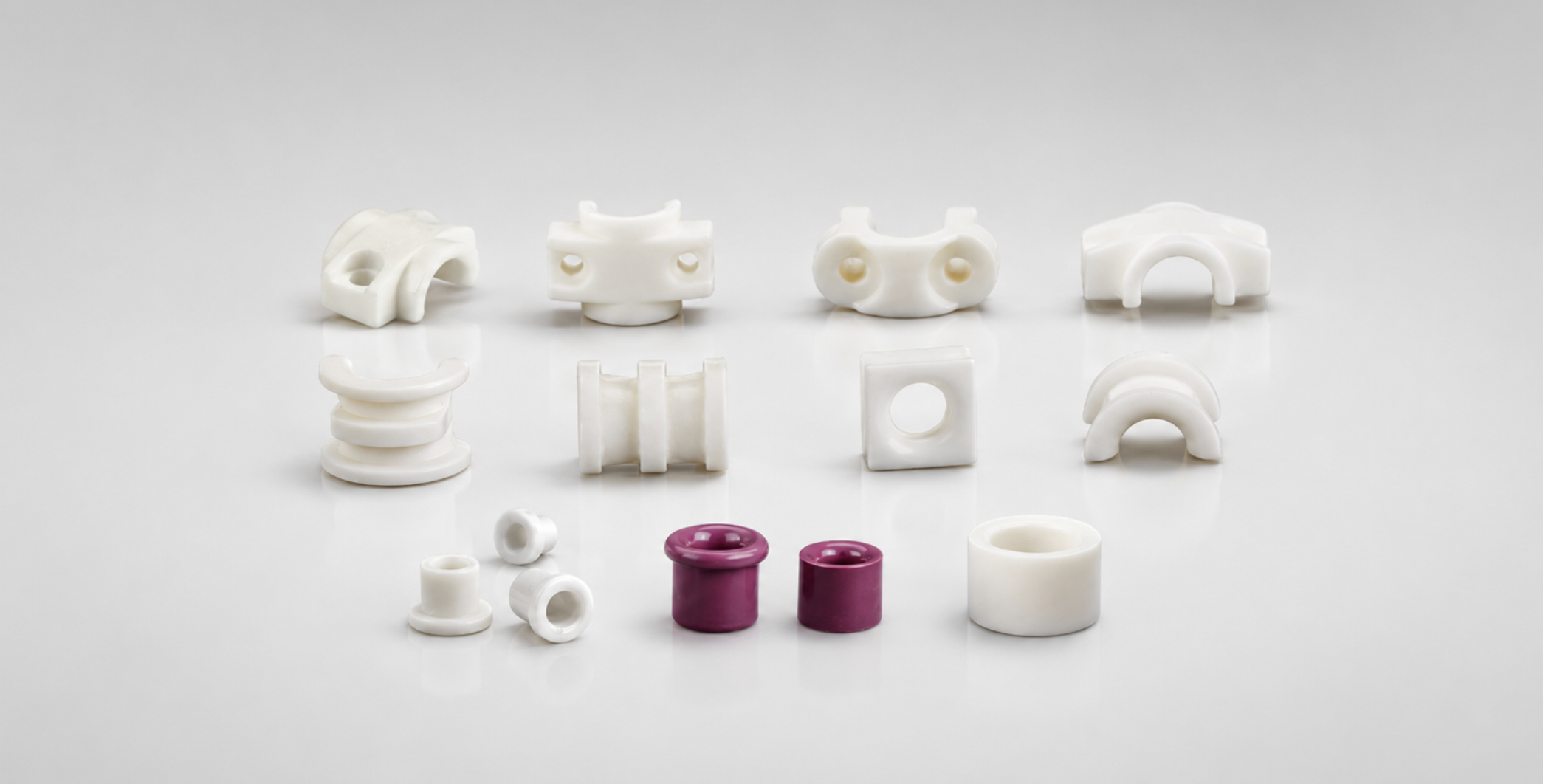

Wire drawing guides — also referred to as drawing guides, wire guides, capstan guides, or approach guides — serve to align and control the wire as it enters and exits the drawing die. Their geometry, material, and surface finish have a direct impact on die wear, wire breakage rates, and the consistency of the finished wire. We offer guides engineered for both wet and dry drawing processes, covering copper, aluminum, brass, and steel wire applications across fine, medium, and coarse wire diameters.

Our range covers guides for single-die drawing machines, continuous drawing machines (straight-line and bull-block type), and multi-wire drawing lines. Whether you need entry guides, exit guides, or intermediate pass guides, we can source units in the exact bore diameter, outer diameter, and length required. Materials include tungsten carbide (WC-Co), silicon nitride (Si₃N₄), polycrystalline diamond (PCD), and wear-resistant tool steel, each suited for specific wire materials, drawing speeds, and lubrication conditions.

For fine and ultra-fine wire drawing applications — such as enameled copper wire, winding wire, or medical-grade wire — we offer guides with mirror-polished bores and tight dimensional tolerances to prevent surface defects and minimize friction. For heavy-gauge or high-tensile steel wire drawing, we provide robust carbide and ceramic guides capable of withstanding extreme contact pressures and abrasive conditions.

All guides are available with worldwide shipping and are supported by our technical team, who can assist with material selection, wear analysis, and compatibility checks against your existing drawing machine tooling.
